| Angle | α0° | α15° | α30° | |
|---|---|---|---|---|
| Bevel length | L | 80 | 92 | 92 |
| Angle J BEVEL | α0°-30° | |
|---|---|---|
| Bevel length | L | 90 |
4 WHEELS FIND OUT MORE
ART. 920 J BEVEL REVERSE
Performances
 |
Motor Power 230/400 VOLT. 3 PHASE 5,5KW.( 5500W) 50/60 HZ |
 |
Bevel Length max 64 mm max 2.51in |
 |
Bevel Angle 0° – 30° |
 |
Plate Thickness 8 – 100mm 0.315 – 3.93in |
 |
Facing max 90 mm max 3.54in |
 |
J BEVEL MAX 90 mm MAX 3.5IN |
 |
Cutter Ø 80 mm – Z6 – R8 – (*)R10 Ø 3.14in – Z6 – R8 – (*)R10 |
 |
Cutter Speed 0 – 900 RPM |
 |
Feeding Speed 0 – 1,4 mt/min 0 – 4.59 ft/min |
 |
Dimensions and weight 967x831x h 1867 mm – Kg. 420 38 x 32.7 x h73.5in – 924 lbs |
 |
Digital Display YES |

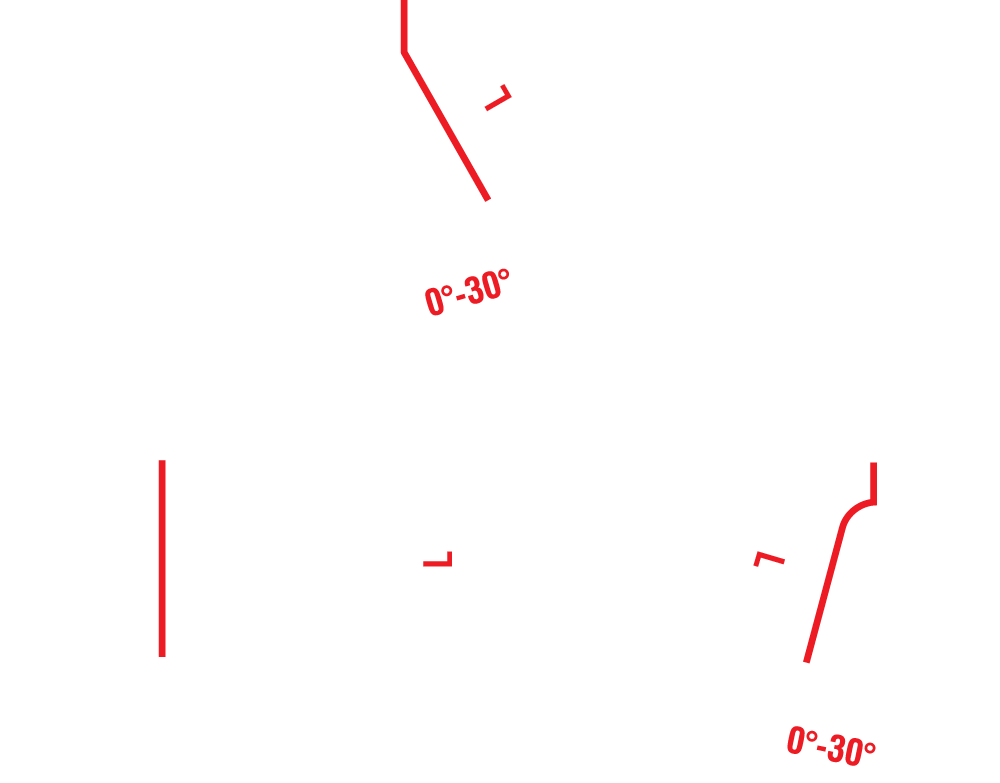

Bevel adjustment
MAX ACHIEVABLE BEVEL
| Angle | α0° | α15° | α30° | |
|---|---|---|---|---|
| Bevel length | L | 80 | 92 | 92 |
| Angle J BEVEL | α0°-30° | |
|---|---|---|
| Bevel length | L | 90 |
Versions on request
| Plate thickness 8/220 mm |
|---|
| Bottom Plate thickness 8 mm |
